• Higher working speeds than conventional systems.

  • Rewinding and active unwinding is possible at travel speeds of up to 15 km/h.

  • Thanks to the high constant torque, even longer hose segments can be pulled out of the field and reeled up.

  • The hose can be reeled from left to right thanks to the swivel mechanism. This saves time when driving straight ahead, e.g. through tramlines.

To the brochure

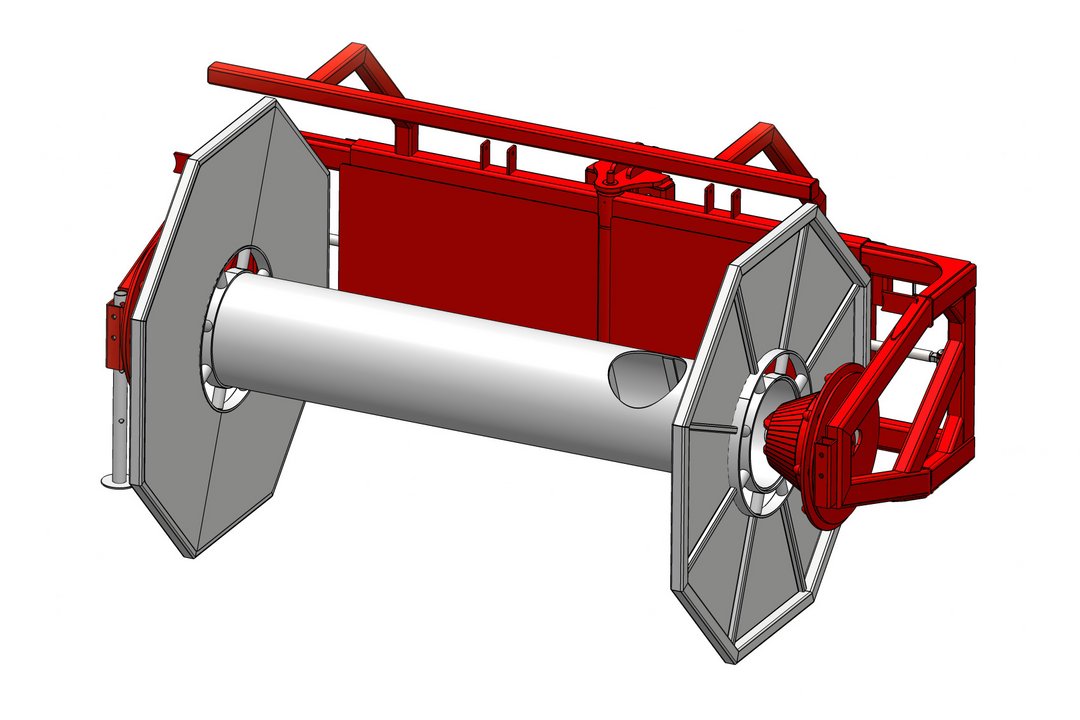

Volmer Engineering Schlauchhaspel Trommel Wechselsystem
  • Max. Time saving, only the hose reel needs to be changed.
  • Convenient control from the driver's cab / one-person operation.
  • The reel is changed without the driver having to get in and out of the cab.
  • All hydraulic lines remain engaged during the entire work process.
  • Contamination from oil, dust and sand is avoided.
  • Up to 1,600 m hose length/reel.
To the brochure

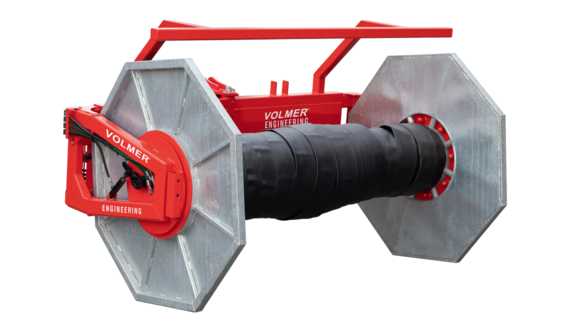

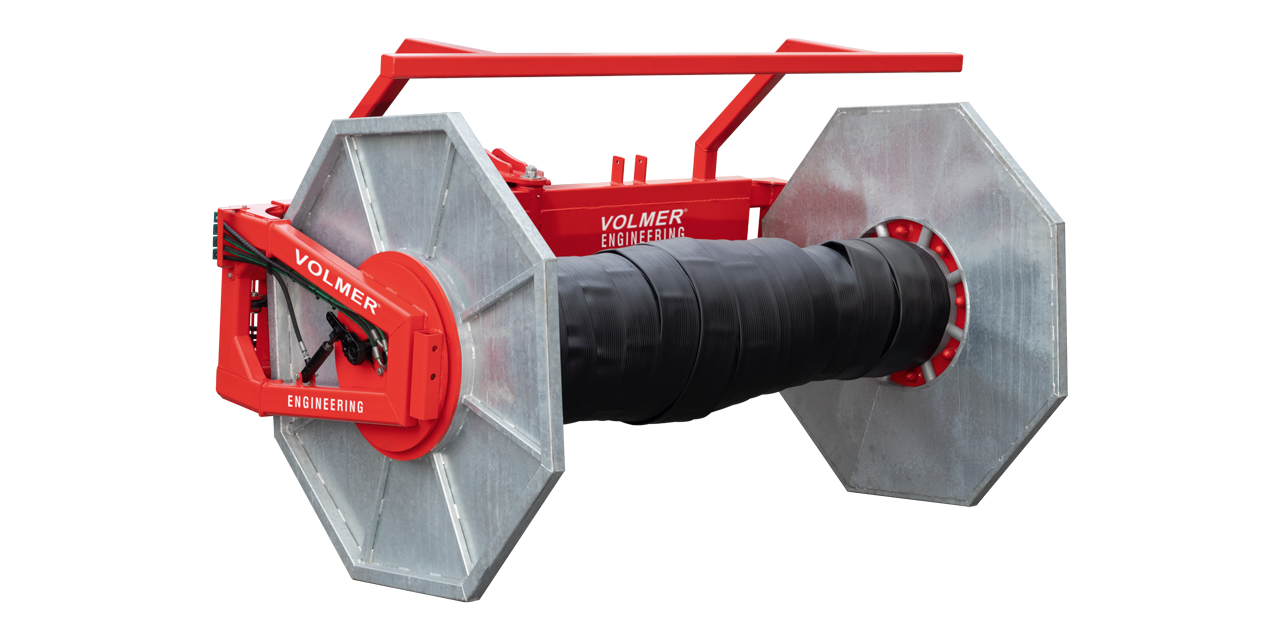

Volmer Engineering Schlauchhaspel mit Trommel Wechselsystem

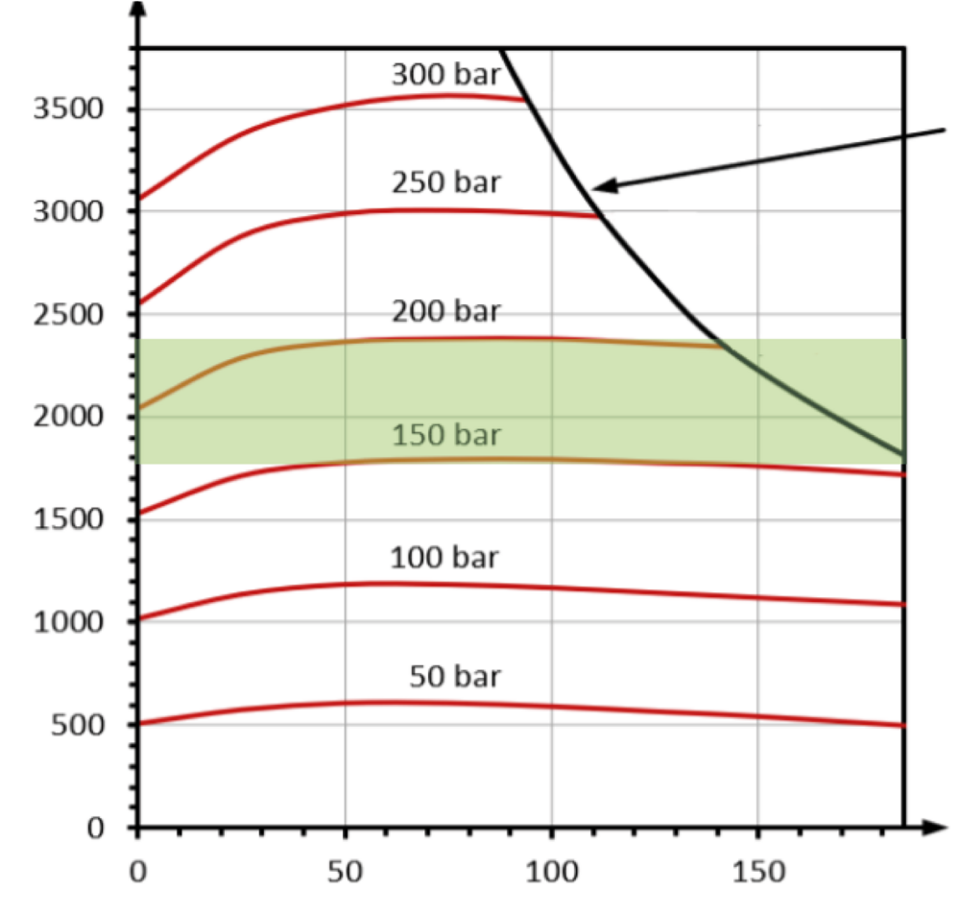

Drehmomentverlauf des Trommel Antriebs
Drehmomentverlauf des Trommel Antriebs
  • High torque across the entire speed range
  • Internal radial piston motor with 800 cm³ and P max. 300 bar
  • Overload protection for traction: 2 DBV 200 bar
  • Powerful torque 3,590 Nm
  • Torque at 180 bar approx. 2,300 Nm
  • Mechanical freewheel
  • Drum brake Ø 320 x 75 (up to 3,500 Nm)
  • Max. Shaft load on the drive side: 4,500 kg
  • Max. Shaft load on running axle stub: 2,850 kg
  • No exposed mechanical components

Short videos

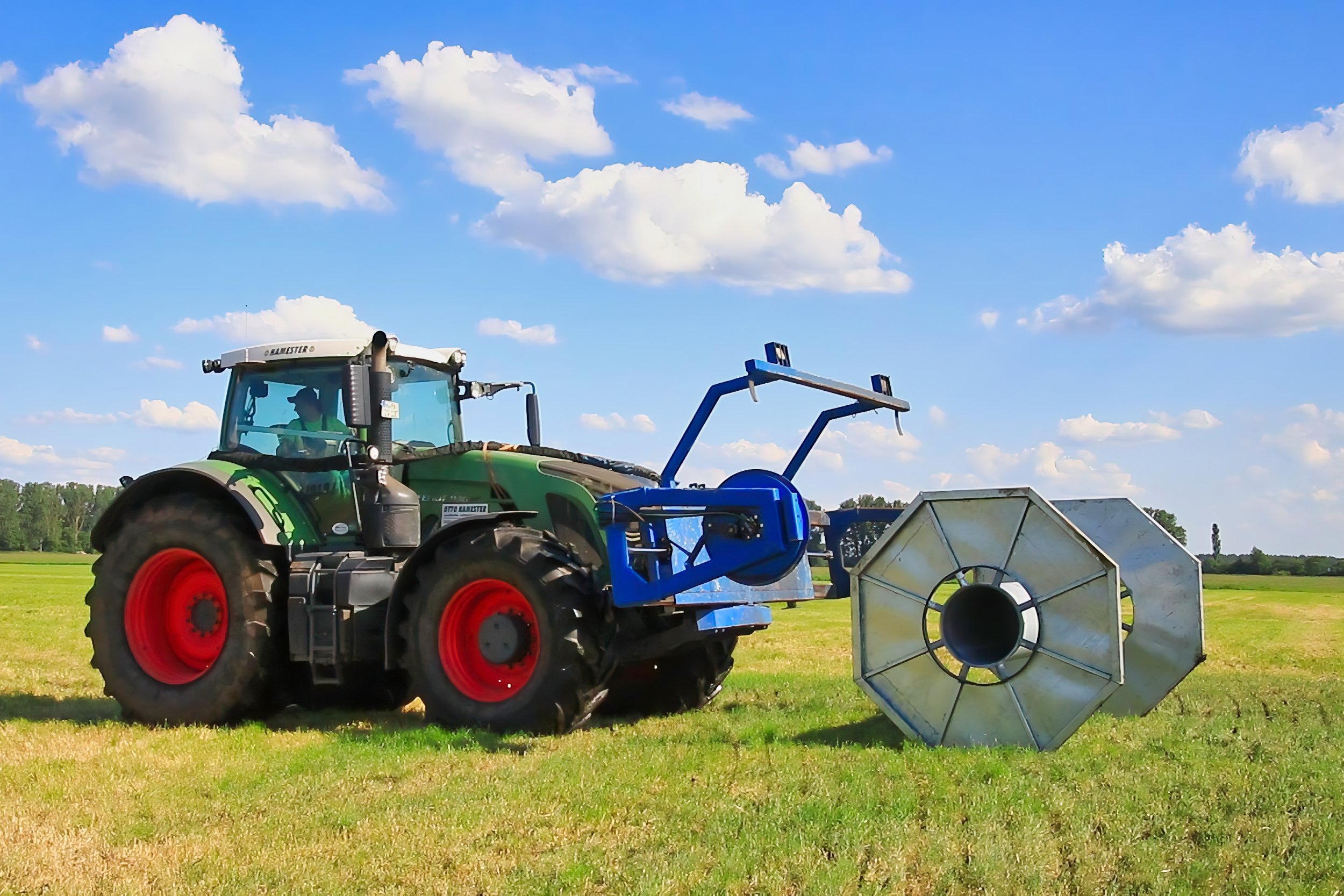

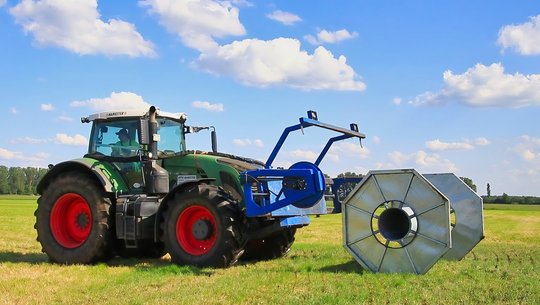

A new empty drum is picked up in less than 20 seconds. And without having to get off the tractor.

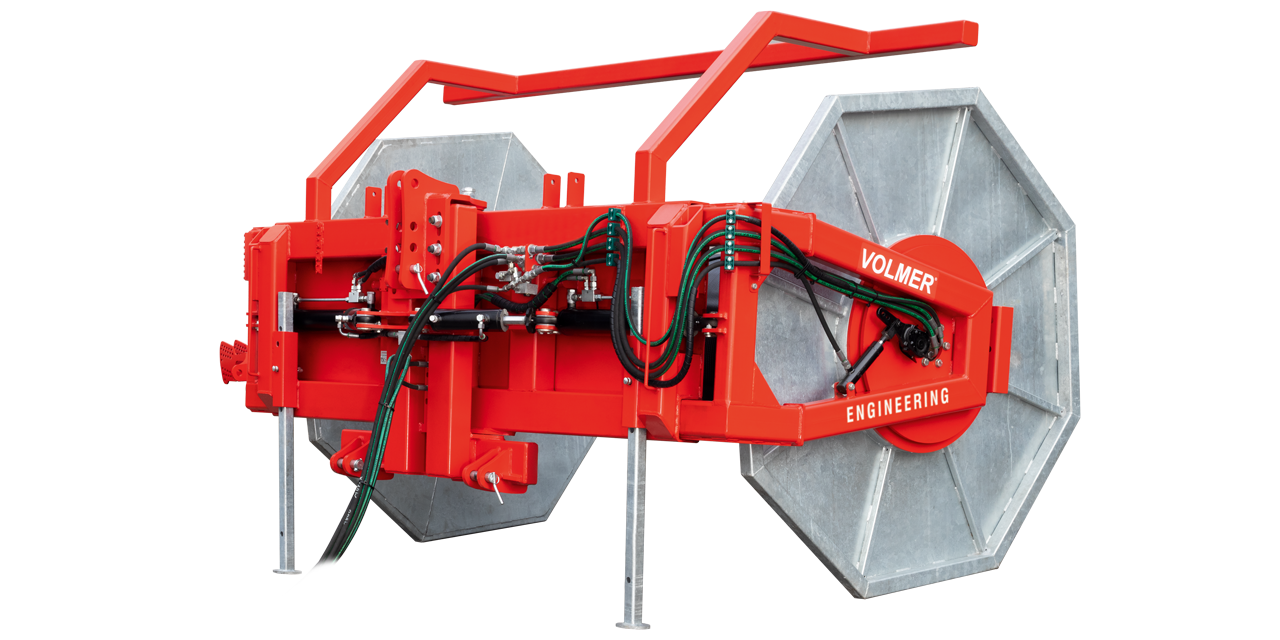

Swiveling the reel to the right and left determines where the hose is wound onto the reel.

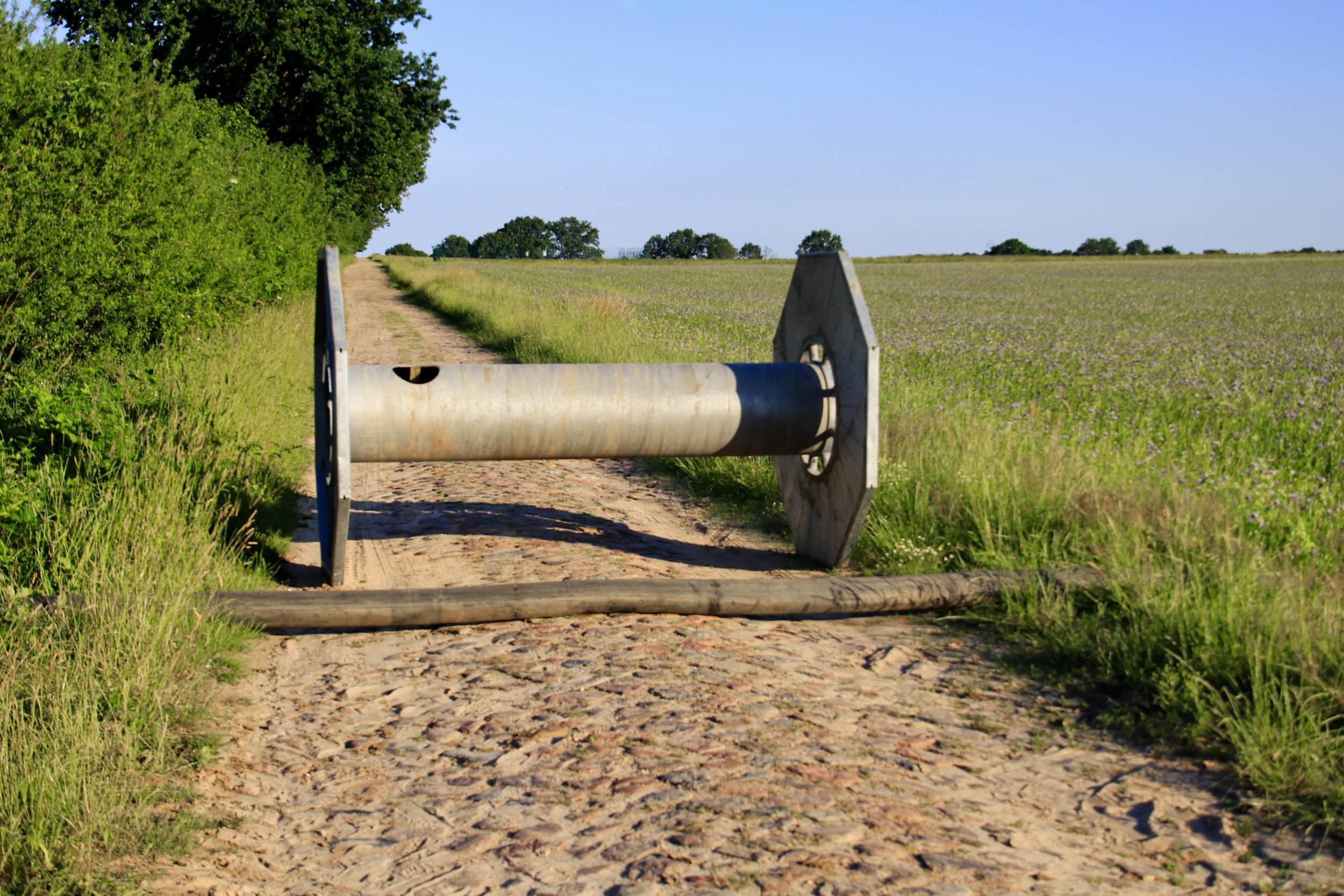

Once the reel is filled with hose, it can simply be put down. 4 to 5 reels make 4000 meters of hose.

The hose reel on Youtube



TO THE YOUTUBE CHANNEL

The VSH hose reel in use

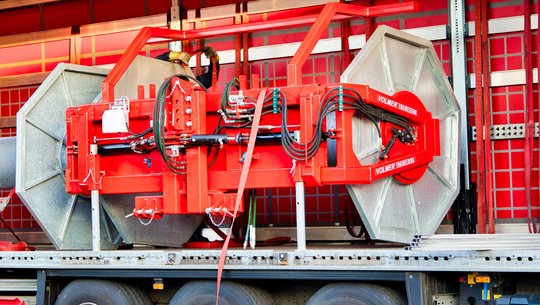

Volmer Engineering Schlauchhaspel mit Trommel auf LKW Verladen
Volmer Engineering Schlauchhaspel mit Schlauchtrommel beim Flachschlauch aufwickeln
Volmer Engineering Schlauchhaspel nimmt Trommel auf
Volmer Engineering Schlauchtrommeln für Schlauchhaspel

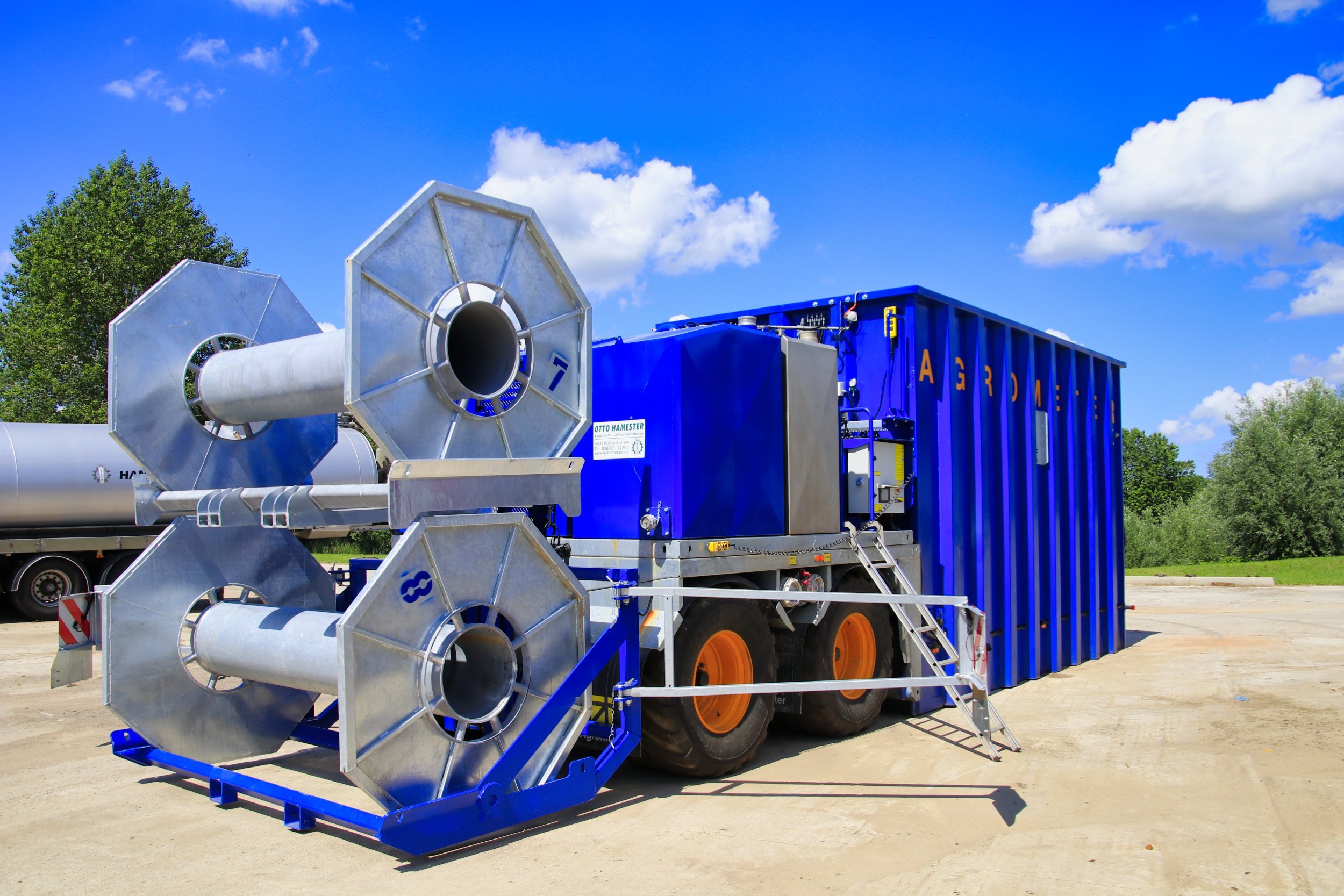

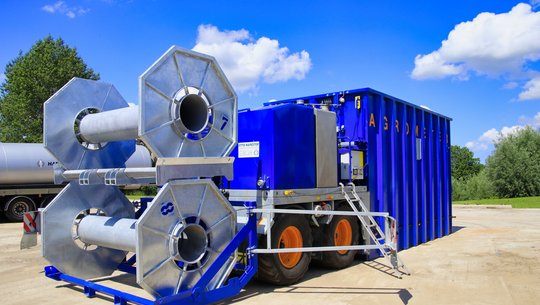

Volmer Engineering Trommeln für Verschlauchung am Güllecontainer

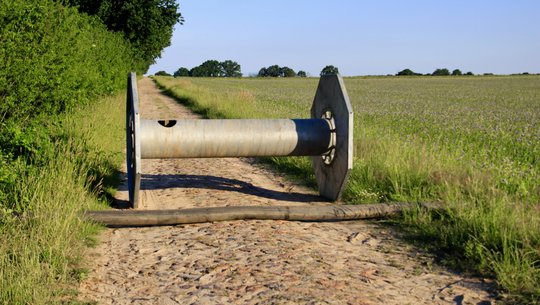

Volmer Engineering Schlauchtrommeln als Sicherung für Pumpschlauch

NEWS

Volmer engineering Strip till Gerät mit Arm für Verschlauchung
Tubing on the CULEX

So that our devices can also be used on hosing systems, we also manufacture a corresponding boom for pulling the hose.

Here, the device is being moved from the…

more

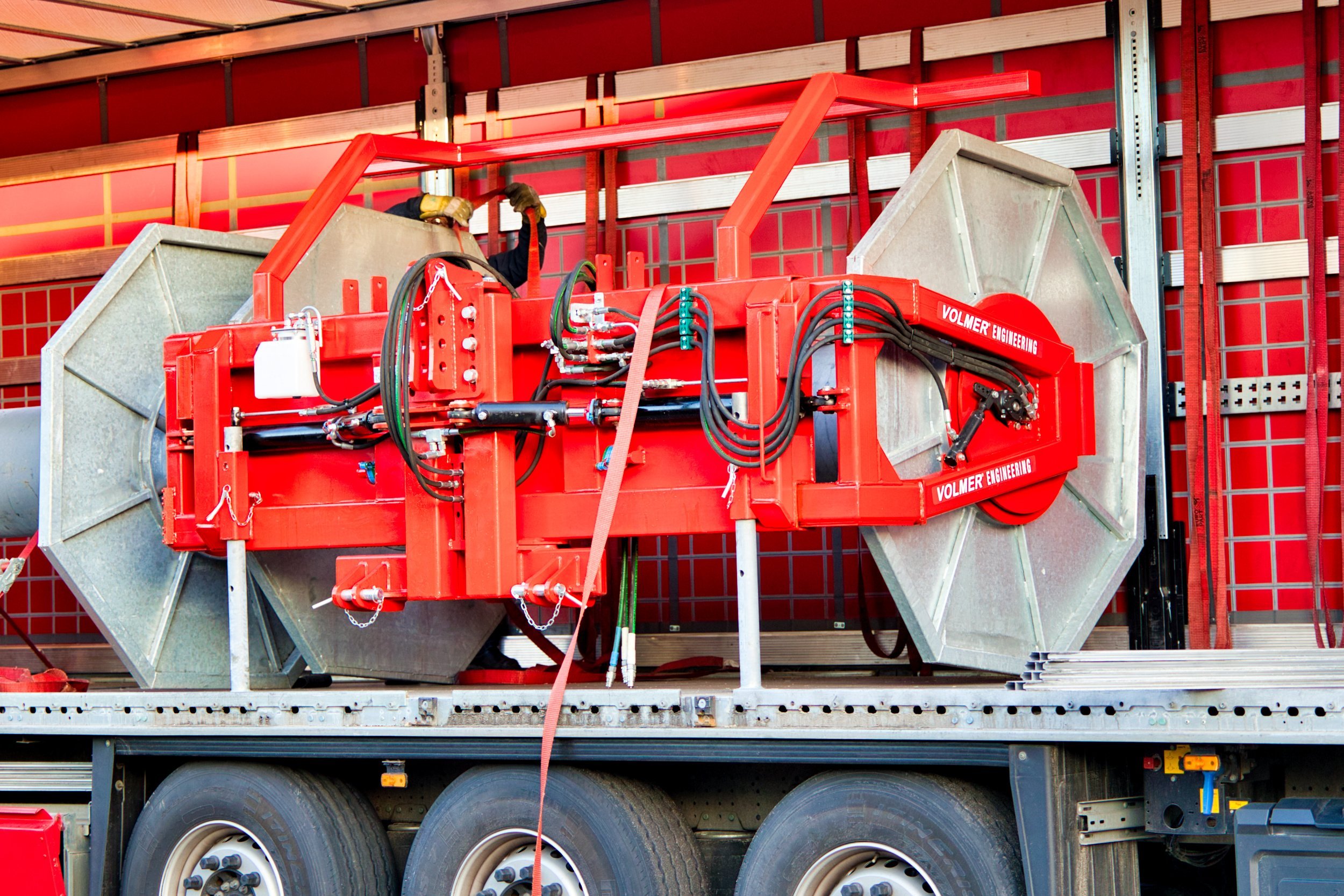

Volmer Engineering Schlauchhaspel mit Trommel Wechselsystem beim Verladen
Hose reel

A new VSH 1000 hose reel with two drums was loaded yesterday evening.

(Read article further)

more

Technical data

Hose reel VSH

Weights and dimensions are approximate and non-binding. Subject to change without notice.
VSH 2000 hose reel with interchangeable reel (diameter 2000 mm)
